Making a open source quadrotor using LHI QAV250 frame (1)

-

1. Main materials

LHI QAV250 Carbon Fiber Frame

MT2204 brushless motor *4

Simonk 12A ESC *4

Flight controller: Pixhawk 2.1

5030 propeller pairs *2

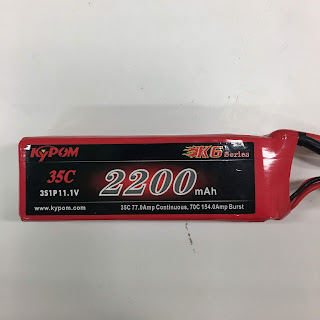

Lipo battery: 2200mAh 35C
Radio receiver: Spectrum DSMX quad race receiver

2. Assembly

Motors with connectors + legs

Power distribution board + ESCs

Motors + Power distribution board + ESCs + body

+ propeller + battery

+ flight controller (Check if the rotation direction is correct!)
