Making a open source quadrotor using DJI 450 frame

-

1. Main materials

Quadcopter frame: F450 HJ450 DJI
Four sets of Motors and ESC: A2212 1000KV (brushless motor), 30A ESC
Bullet connector: 3.5mm
Four pairs of propellers: 1045
Flight controller: Pixhawk2.1 standard set
RC receiver-transmitter set: Spektrum DSMX quad race receiver with diversity
[Optional] Landing gear

2. Assembly

Frame
Power distribution for motors
Motor & ESC connector
Overall power distribution: for a pixhawk2.1, Jetson TX2, and motors. (A 4cells Lipo battery with 4000mAh is chosen in my case)

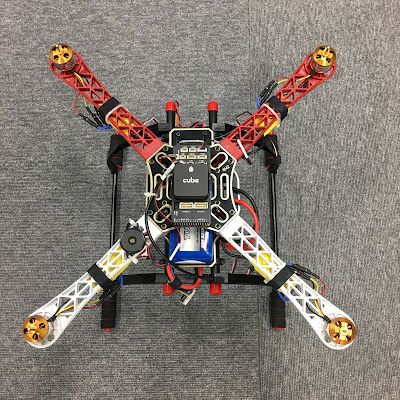

Assembly result: basic requirements

Reference:
[1] http://ardupilot.org/copter/docs/connect-escs-and-motors.html
